C.J. Smith

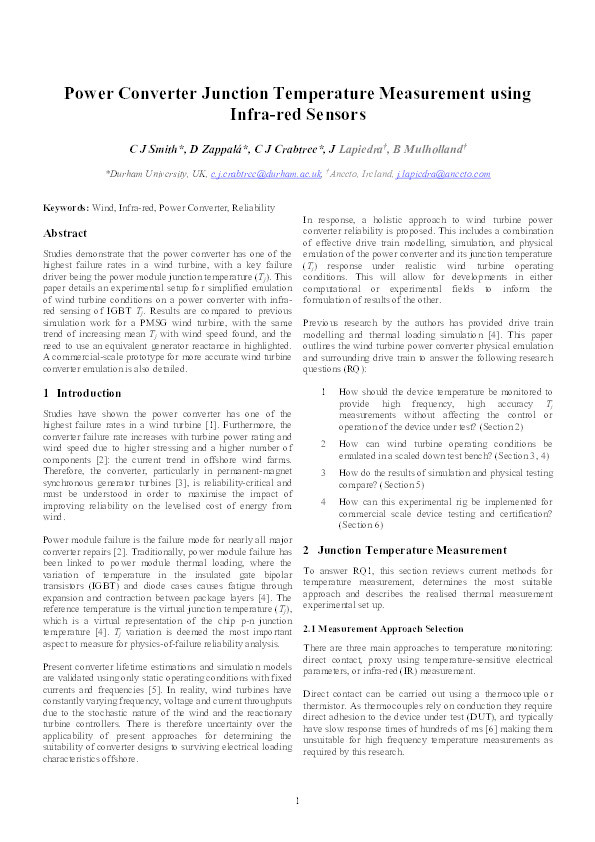

Power Converter Junction Temperature Measurement using Infra-red Sensors
Smith, C.J.; Zappalá, D.; Crabtree, C.J.; Lapiedra, J.; Mulholland, B.
Authors
D. Zappalá
Professor Christopher Crabtree c.j.crabtree@durham.ac.uk
Professor
J. Lapiedra
B. Mulholland
Abstract
Studies demonstrate that the power converter has one of the highest failure rates in a wind turbine, with a key failure driver being the power module junction temperature ( T j ). This paper details an experimental setup for simplified emulation of wind turbine conditions on a power converter with infra-red sensing of IGBT T j . Results are compared to previous simulation work for a PMSG wind turbine, with the same trend of increasing mean T j with wind speed found, and the need to use an equivalent generator reactance in highlighted. A commercial-scale prototype for more accurate wind turbine converter emulation is also detailed.
Citation
Smith, C., Zappalá, D., Crabtree, C., Lapiedra, J., & Mulholland, B. (2019). Power Converter Junction Temperature Measurement using Infra-red Sensors. Journal of Engineering, 2019(17), 4452-4456. https://doi.org/10.1049/joe.2018.8098
Journal Article Type | Article |
---|---|
Acceptance Date | Aug 2, 2018 |
Online Publication Date | Jan 22, 2019 |
Publication Date | Jun 30, 2019 |
Deposit Date | Aug 28, 2018 |
Publicly Available Date | Sep 12, 2018 |
Journal | Journal of Engineering |
Publisher | Institution of Engineering and Technology (IET) |
Peer Reviewed | Peer Reviewed |
Volume | 2019 |
Issue | 17 |
Pages | 4452-4456 |
DOI | https://doi.org/10.1049/joe.2018.8098 |
Public URL | https://durham-repository.worktribe.com/output/1350544 |
Files
Published Journal Article (Advance online version)
(3 Mb)
PDF
Publisher Licence URL
http://creativecommons.org/licenses/by/3.0/
Copyright Statement
Advance online version
Published Journal Article
(3 Mb)
PDF
Publisher Licence URL
http://creativecommons.org/licenses/by/3.0/
Accepted Journal Article
(2.2 Mb)
PDF
Publisher Licence URL
http://creativecommons.org/licenses/by/3.0/
Copyright Statement
This is an open access article published by the IET under the Creative Commons Attribution License (http://creativecommons.org/licenses/by/3.0/)
