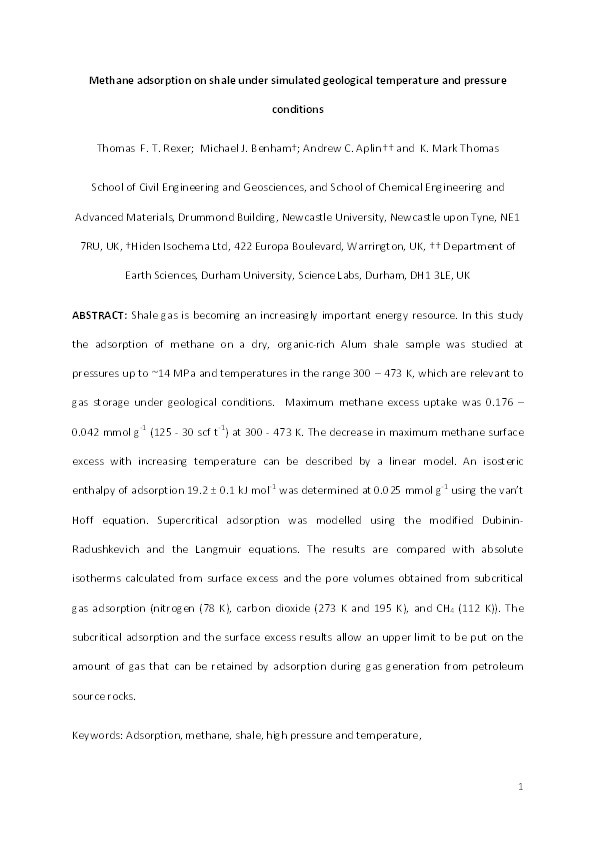

Methane adsorption on shale under simulated geological temperature and pressure conditions

Rexer, T.F.; Benham, M.J.; Aplin, A.C.; Thomas, K.M.

Abstract

Shale gas is becoming an increasingly important energy resource. In this study, the adsorption of methane on a dry, organic-rich Alum shale sample was studied at pressures up to 14 MPa and temperatures in the range 300–473 K, which are relevant to gas storage under geological conditions. Maximum methane excess uptake was 0.176–0.042 mmol g–1 (125–30 scf t–1) for the temperature range of 300–473 K. The decrease in maximum methane surface excess with increasing temperature can be described with a linear model. An isosteric enthalpy of adsorption 19.2 ± 0.1 kJ mol–1 was determined at 0.025 mmol g–1 using the van’t Hoff equation. Supercritical adsorption was modeled using the modified Dubinin–Radushkevich and the Langmuir equations. The results are compared with absolute isotherms calculated from surface excess and the pore volumes obtained from subcritical gas adsorption (nitrogen (78 K), carbon dioxide (273 and 195 K), and CH4 (112 K)). The subcritical adsorption and the surface excess results allow an upper limit to be put on the amount of gas that can be retained by adsorption during gas generation from petroleum source rocks.

Citation

Rexer, T., Benham, M., Aplin, A., & Thomas, K. (2013). Methane adsorption on shale under simulated geological temperature and pressure conditions. Energy and Fuels, 27(6), 3099-3109. https://doi.org/10.1021/ef400381v

• Journal Article Type: Article
• Publication Date: Jun 1, 2013
• Deposit Date: Jun 7, 2013
• Publicly Available Date: Sep 11, 2013
• Journal: Energy and Fuels
• Print ISSN: 0887-0624
• Electronic ISSN: 1520-5029
• Publisher: American Chemical Society
• Peer Reviewed: Peer Reviewed
• Volume: 27
• Issue: 6
• Pages: 3099-3109
• DOI: https://doi.org/10.1021/ef400381v
• Public URL: https://durham-repository.worktribe.com/output/1473924
