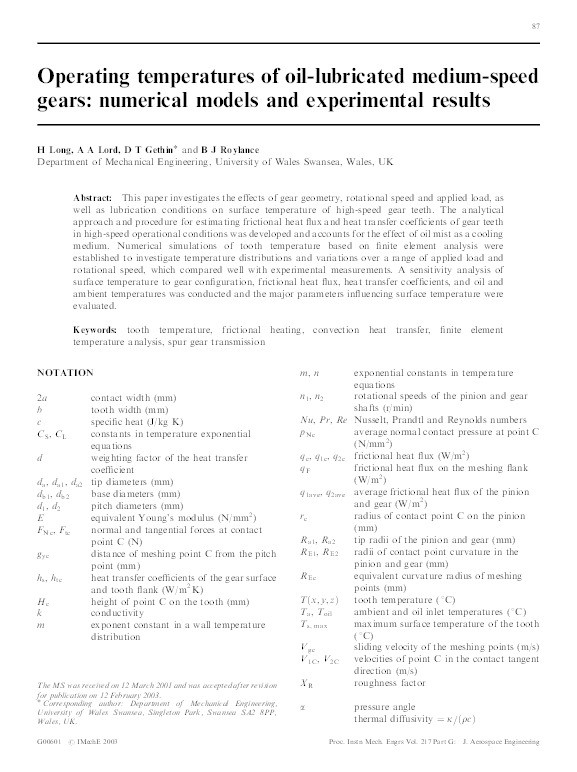

Operating temperatures of oil-lubricated medium-speed gears : numerical models and experimental results

Long, H.; Lord, A.A.; Gethin, D.T.; Roylance, B.J.

Abstract

This paper investigates the effects of gear geometry, rotational speed and applied load, as well as lubrication conditions on surface temperature of high-speed gear teeth. The analytical approach and procedure for estimating frictional heat flux and heat transfer coefficients of gear teeth in high-speed operational conditions was developed and accounts for the effect of oil mist as a cooling medium. Numerical simulations of tooth temperature based on finite element analysis were established to investigate temperature distributions and variations over a range of applied load and rotational speed, which compared well with experimental measurements. A sensitivity analysis of surface temperature to gear configuration, frictional heat flux, heat transfer coefficients, and oil and ambient temperatures was conducted and the major parameters influencing surface temperature were evaluated.

Citation

Long, H., Lord, A., Gethin, D., & Roylance, B. (2003). Operating temperatures of oil-lubricated medium-speed gears : numerical models and experimental results. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 217(2), 87-106. https://doi.org/10.1243/095441003765208745

• Journal Article Type: Article
• Publication Date: 2003-03
• Deposit Date: Feb 14, 2008
• Publicly Available Date: Mar 9, 2010
• Journal: Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering
• Print ISSN: 0954-4100
• Electronic ISSN: 2041-3025
• Publisher: SAGE Publications
• Peer Reviewed: Peer Reviewed
• Volume: 217
• Issue: 2
• Pages: 87-106
• DOI: https://doi.org/10.1243/095441003765208745
• Keywords: Tooth temperature, Frictional heating, Convection heat transfer, Finite element temperature analysis, Spur gear transmission.
