Professor Sana Salous sana.salous@durham.ac.uk
Professor
A dual-band sounder is used in both trolley and van measurements in the dense urban environment of Manchester city center to characterize the uplink (1920-1980 MHz) and downlink (2110-2170 MHz) frequency-division duplex (FDD) channels allocated to third-generation (3G) mobile radio systems. The data are analyzed with 60- and 5-MHz resolutions, as used for 3G wideband code-division multiple-access systems. Root-mean-square (rms) delay spread and 15-dB widths of mainly temporally averaged delay profile are presented either as cumulative distribution functions (cdfs) for each individual frequency band or as histograms of the difference between uplink and downlink on a local area basis. It was found that the histograms show larger differences between the two bands than the individual cdf and that the differences between the FDD channels are more pronounced on circumferential routes and shadowed locations. Correlations of rms delay spread with excess path loss and distance are on the order of 0.5 and 0.4, respectively.
Journal Article Type | Article |
---|---|
Publication Date | Sep 1, 2007 |
Deposit Date | May 28, 2008 |
Publicly Available Date | May 28, 2008 |
Journal | IEEE Transactions on Vehicular Technology |
Print ISSN | 0018-9545 |
Publisher | Institute of Electrical and Electronics Engineers |
Peer Reviewed | Peer Reviewed |
Volume | 56 |
Issue | 5 |
Pages | 2831-2843 |
DOI | https://doi.org/10.1109/tvt.2007.900495 |
Keywords | Excess path loss, Frequency division duplex, Root mean square delay spread, Third generation, Wideband code division multiplexing. |
Public URL | https://durham-repository.worktribe.com/output/1566277 |
Publisher URL | http://ieeexplore.ieee.org/iel5/25/4305470/04305535.pdf?isnumber=4305470&arnumber=4305535 - |

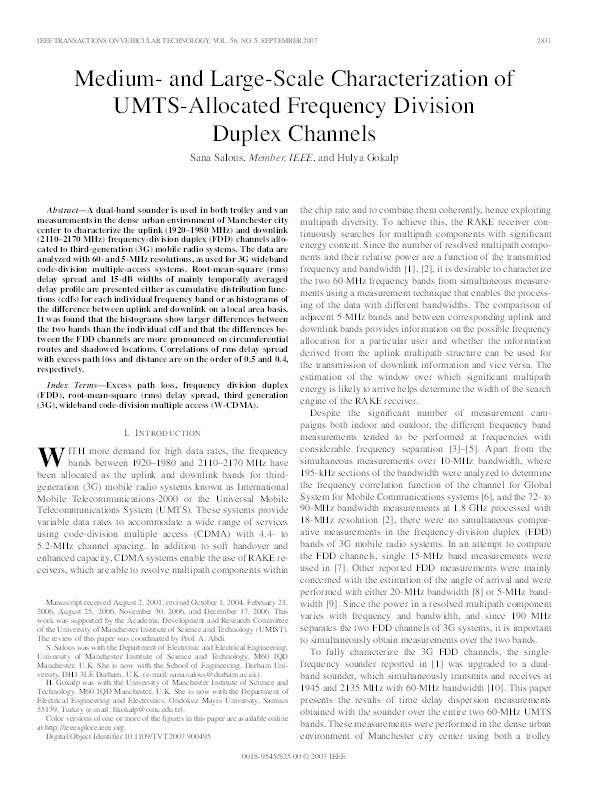

Published Journal Article
(1.4 Mb)
PDF
Copyright Statement
©2007 IEEE. Personal use of this material is permitted. However, permission to reprint/republish this material for advertising or promotional purposes or for creating new collective works for resale or redistribution to servers or lists, or to reuse any copyrighted component of this work in other works must be obtained from the IEEE.
